Tractor Truck 6×4

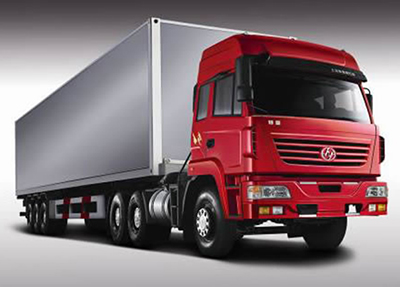

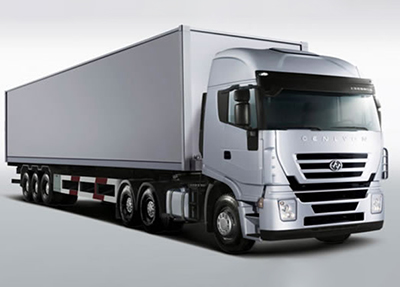

Our 6×4 tractor trucks include three types of tractor trucks, that is, Hongyan XinDaKang Euro II , Hongyan Tampa Euro III , and Hongyan Genlyon National III . Hongyan XinDaKang tractor trucks and Hongyan Tampa tractor trucks adopt Germany ZF CQ8111D rotary valve steering gear and full floating, double reduction Steyr cast steel driving axle. Hence, their reliability and quality are assured.
Technical Parameters
| Hongyan XinDaKang Euro II 6×4 Tractor Truck | |||
| Model | CQ4253TVG294 | ||
| Driving type | 6×4 | ||
| Total mass kg | 49000 | ||
| Tractor curb weight kg | 8870 | ||
| Saddle carrying capacity kg | 16000 | ||
| Total mass of the trailer kg | 40000 | ||
| Wheelbase mm | 2925+1350 | ||
| Outline dimensions mm | Length | 6576 | |
| Width | 2500 | ||
| Height | 3651,3591 | ||
| Max. speed km/h | 90 | ||
| Max. gradeability % | 30 | 32 | |
| Fuel consumption under certain conditions L/100km | 38 | 39 | |
| Saddle joint face ground clearance mm | Idle load/Full load: 11.00tire+50#saddle:1317/1252;11.00tire +90#saddle:1367/1302 | ||
| Saddle front/rear turning radius mm | 1750-2300/2100 | ||
| Distance between saddle and balance shaft mm | 290 | ||
| Traction pin diameter mm | 50.8 or 88.9 | ||
| Engine model | WD12.375 | WD12.420 | |
| Engine power kw(Ps) | 276 (375 Hp) | 309 (420 Hp) | |
| Max. torque/speed (N.m/(r/min)) | 1500/1300～1500 | 1750/1300～1500 | |
| Clutch | Φ430mm single plate large diaphragm spring clutch | ||
| Transmission | 12JS160T | 12JS180T | |
| Cab | Hongyan XinDaKang cab | ||
| Steering gear | German ZF CQ8111D rotary valve steering gear | ||
| Driving axle | Full floating, double reduction with differential Steyr cast steel driving axle | ||
| Tire | 12.00-20,11.00-20,12.00R20,11.00R20 | ||
| Emission standard | Euro II | ||
SAIC-IVECO HONGYAN Commercial Vehicle Company is a tractor truck manufacturer in China. Besides tractor trucks, we also produce dump trucks, bulk cement trucks etc. to suit your various heavy duty truck needs. In order to ensure the quality of our products, we strictly implement ISO9001:2000 quality management system and carefully monitor each production process. Meanwhile, we also take effective measures to reduce our production costs, thus keeping down our prices. As a result of our high quality and economical prices, our heavy duty trucks are well received in the Middle East, Africa, America, Southeast Asia etc., totaling over 30 countries.
For more information, please contact us immediately!
-
- Tractor Truck 4×2 Our 4×2 tractor trucks include Hongyan XinDaKang Euro II tractor truck and Hongyan Tampa Euro III tractor truck. The former adopts specially-designed Hongyan XinDaKang cab and the latter use Hongyan Tampa cab. They all use Φ430mm single plate large diaphragm spring clutch and Fuller 9-speed transmission ...
