Special Heavy Duty Truck

With the rapid development of the world economy, common transport vehicles fail to satisfy customers' special needs. In this case, more specially built or modified vehicles are used for customers' special applications. These special trucks can be used to transport materials with different properties and in different states, e.g.: liquid, gaseous and bulk materials, granules; livestock, poultry, fish and other animals; toxic, inflammable and explosive goods. Tanker trucks, fire trucks, aircraft tractors, charging cars, and compressed air cars are some of common special trucks.

As a special truck manufacturer in China with decades of experience, SAIC-IVECO HONGYAN Commercial Vehicle Company is able to produce various kinds of special heavy duty trucks to suit customers' specific needs. Our typical products include concrete mixer trucks, bulk concrete trucks and tanker trucks. These products are widely used in the construction, chemical, transportation, energy, and other industries.

Apart from special trucks, we also manufacture tractor unit, dump trucks and cargo trucks. Known for their reliable performance, low fuel consumption and high durability, our products are sought after by customers in Africa, Southeast Asia, Central Asia, the Middle East, and South America.
No matter what kind of heavy duty vehicles you need, we will do our best to provide you the exact products you need, with considerate service.

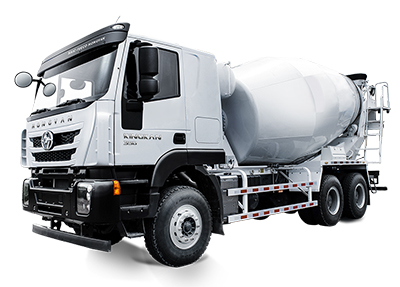

Genlyon Concrete Mixer Truck
Specification
Model CQ5254GJBHTG384
Driving Type 6×4
Wheel Base (mm) 3825+1350
Gross Vehicle Weight (kg) 25000
Vehicle Kerb Mass (kg) 12980
Outside Dimension (mm) L 8875
W 2500
H 3950
Max. Speed (km/h) 80
Engine Cursor, C9 340
Clutch 430 diaphragm type
Transmission Fast RT-11509C
Cab Genlyon cab with air conditioner and one sleeper
Oil Tank 400L
Leaf Spring No. (F/R) 9/12
Steering ZF 8098 technology
Rear Axle/Ratio Full-floating, twin reduction with differential cast steel/speed ratio 5.73
Frame 865/317 8+8
Tire 12.00R20
Mixer Body Material Nose Cone and Thickness B520JJ, 5mm
Rear Cone and Thickness B520JJ, 5mm
Middle Section and Thickness B520JJ, 5mm
End Socket and Thickness B520JJ, 5mm
Specs of Mixing Drum and Drive System Water Capacity (m³) 8
Remainder Rate (%) 0.06
Rotating Speed of Mixing Drum 0~16
Oil Pump EATON 46
Motor EATON 46
Reducer ZF3301
Water Supply System Radiator AKG089
Water Tank Volume (L) 300
Supply Way Air pressure
Emission Standard Euro III

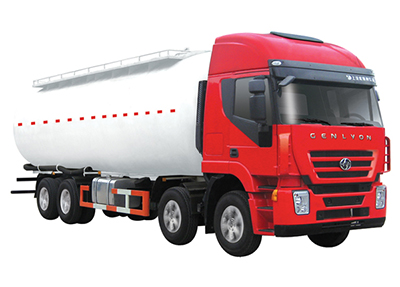

Bulk Powder Tank Truck
Specification
Model CQ5314GFLHTG466
Driving Type 8×4
Gross Vehicle Weight (kg) 31000
Kerb Mass (kg) 18220
Cab High roof with double sleepers
Outside Dimension (L×W×H) (mm) 11894×2500×3950
Max. Speed (km/h) 90
Wheelbase (mm) 1800+4600+1350
Tank Volume 41m³, 43m³
Engine Cursor 9-340hp, cursor 9-380hp
Displacement (L) 8.71
Combustion Type/Injection 4 valves, electronic controlled common rail, turbocharging intercooler
Gearbox 12JS160T
Rear Axle Hub reduction rear axle casting housing/ratio 4.8
Frame High performance steel 865×317×(8+8)
Brake System S-CAM actuated drum brake F/R
Dual line air brake system
Suspension F/R semi-elliptical suspension
Steering ZF hydraulic power steering with variable ratio
Clutch Φ430 diaphragm clutch
Fuel Tank 400L (aluminum)
Tire 12.00R20
Emission STD China III, Euro III

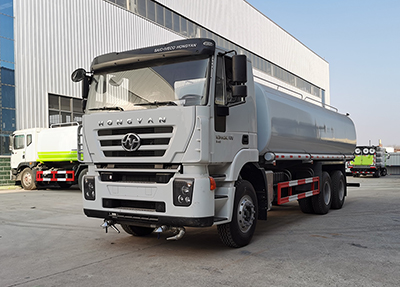

Water Tanker
Technical Specification
Model CQ1254HTG434
Driving Type 6×4
Gross Vehicle Weight (kg) 25000
Kerb Mass (kg) 8900
Max. Payload (kg) 16100
Wheelbase(mm) 4350+1350
Outside Dimension (mm) L 9980
W 2500
H 3550
Tanker(L/volume) 15000-18000L 6800×2200×1500
Max. Speed (km/h) 80
Engine Cursor 9-290-380hp
Clutch Single plate, Φ430 large diaphragm-spring type
Gearbox 12JS160T
Cab Long cab with low roof
Leaf Spring No. 8/10+6
Steering ZF 8098 rotary valve steering
Rear Axle/Ratio Hub reduction rear axle welding housing/4.8,5.73
Frame 865×280×(8+5)
Oil Tank 350L
Tire 11.00R20, 12.00R20
Emission STD China III Euro III
Oil Tank Truck
Technical Specification
Model CQ5254GJYHMG434
Driving Type 6×4
Wheelbase (mm) 4325+1350
Gross Vehicle Weight (kg) 25000
Vehicle Kerb Mass (kg) 10573
Max. Payload (kg) 14297
Complete vehicle Dimension (mm) L 9560
W 2500
H 3713
Max. Speed (km/h) 80
Max. Gradeability (%) 28~45
Oil Tanker Capacity 20m³
Oil Tanker Material Carbon steel Q235
Body Thickness 5mm
Engine SFP(SAIC FIAT POWERTRAIN HONGYAN) Cursor 290
Max. Power (kw/rpm) 290hp (213kw)
Clutch Single plate spiral spring Φ430 large diaphragm-spring type
Transmission CQ9MA
Cab Hongyan Genlyon M100 cab with A/C, single sleeper
Brake System Dual circle air braking system
Axle Payload F+ R1+R2 (kg) 7000+13000+13000
Drive Axle Hub reduction welding axle with speed rate of 4.42
Suspension F/R 9/12 semi-elliptical spring
Tire 12.00R20
Fuel Tank (L) 350L
Emission Standard Euro III

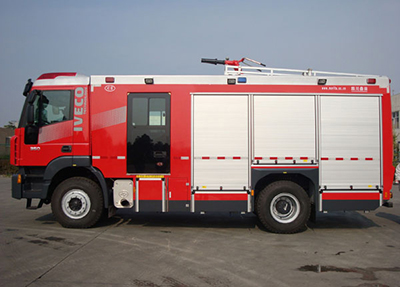

Fire Truck
Technical Parameters
Model CQ5334TXFHTG504
Gross Vehicle Weight (kg) 33000
Curb Weight 20650kg
Playload 11700kg
Carriage Exterior Size 10655×2500×3850(mm)
Engine Model Cursor 9
Max. Engine Power 380hp
Rear Axle Hub reduction rear axle welding housing
Wheelbase (mm) 5025+1350
Tire 12.00R20
Max. Speed 90km/h
Driving Type 6×4

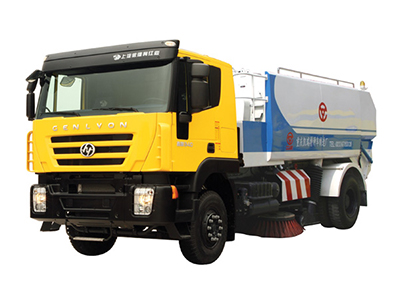

Street Sweeper
Technical Parameters
Model CQ5165ZLJHUG461
Driving Type 4×2
Gross Vehicle Weight (kg) 16000
Kerb Mass (kg) 7120
Max. Payload (kg) 8750
Wheelbase (mm) 4600
Outside Dimension (mm) L 8005
W 2500
H 3101
Inside Dimension (mm) L 5300
W 2200
H 1490
Max. Speed 80km/h
Engine Cursor 310hp
Clutch Single plate, Φ430 large diaphragm-spring type, Φ430mm
Gearbox 10JS140
Cab Long cab with low roof
Leaf Spring No. 8/10+6
Steering ZF 8098 rotary valve steering
Rear Axle/Ratio Hub reduction rear axle welding housing/4.8,5.73
Frame 865mm×280mm×(8+5)mm
Tire 11.00R20,12.00R20
