Home » Products » Cargo Truck » Genlyon Euro IV 6×4 Cargo Truck

Cargo Truck

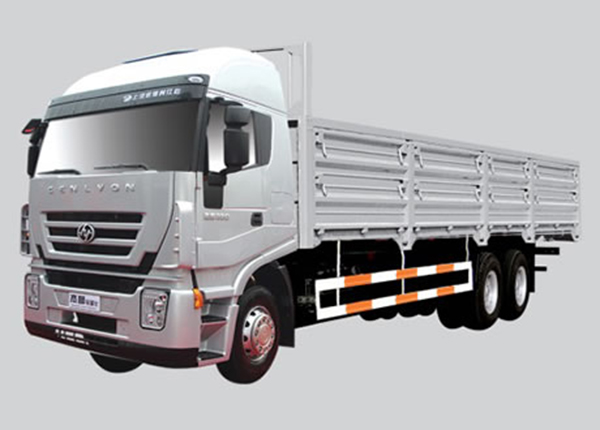

Genlyon Euro IV 6×4 Cargo Truck

Our 6×4 cargo truck adopts full floating, double reduction Steyr cast steel driving axles and 10JSD140A transmission. Designed with environmental protection in mind, it conforms to Euro IV standards. So it is completely safe to use for the environment. This cargo truck is durable and reliable, and also provides a comfortable cab.

Technical Parameters

Model GENLYON CQ1255HTG434
Driving type 6×4
Weights G.V.W. (kg.) 25000
Kerbweights (kg.) 11570
Payload (kg.) @ G.V.W. 13430
Overall Dimensions (mm) Wheelbase 5925+1350
Overall length 11990
Cab width 2500
Cab height (unladen) 3813 /3613/3201
Front overhang 1435
Rear overhang 3280
Min. Ground clearance 280
Performance Parameters Maximum Speed ( km/h ) 110
Economic Speed ( km/h ) 78-95
Maximum Gradability ( % ) 21%
Minimum Turning Diameter ( mm ) 9200
Cab High-roof
Engine Model C9 310
Capacity 8709ml
Max power (HP/KW)@rpm 310HP/227KW @2100rpm
Max torque (Nm) @rpm 1250Nm @ 1200-1500rpm
Emission regulation (EURO IV)
Gearbox FAST 10JSD140A
Clutch φ430 (17")single plate, diaphragm spiral spring, pull type
Suspensions Front semi-elliptic
Rear semi-elliptic
Steering power assisted
Drive Axles Type single reduction
Loading 13T+13T
Ratio 4.11
Tyre 11.00R20 12.00R20 295/80R22.5 315/80R22.5
Fuel Tank 400 liters steel with lockable fuel cap
Cargo Body
Type rectangle
Length (mm) 9400
Width (mm) 2368
Height (mm) 800
Optional
Engine C9 290HP/340HP/380HP
Wheelbase(mm) 3825+1350, 4425+1350, 4725+1350, 5025+1350
Cab Flat roof

Thanks to our consistent efforts and decades of experience, we at SAIC-IVECO HONGYAN Commercial Vehicle Company consistently satisfy our customers by providing high quality products at economical prices. Today, we are known as a reliable cargo truck manufacturer in China. To ensure the quality of our products, we have established a complete quality control system to monitor every production process, introduced advanced manufacturing technology from Italian IVECO, employed experienced staff, and utilized sophisticated inspection equipment. In addition to quality products, we also provide customers with superior service. Consequently, our products are very popular with customers worldwide.

Please don't hesitate to contact us if you are interested in our heavy trucks, whether cargo trucks, dump trucks, or cargo trucks. Welcome!
