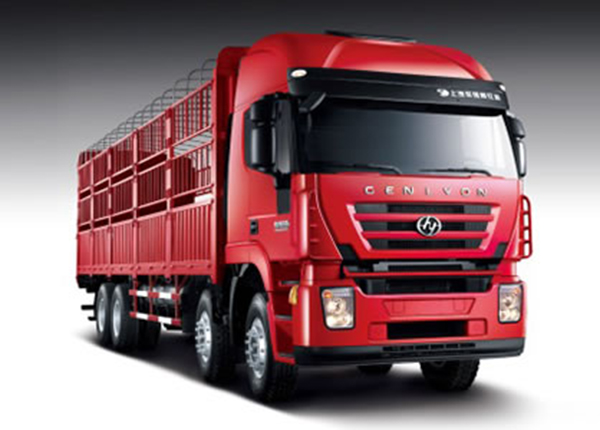

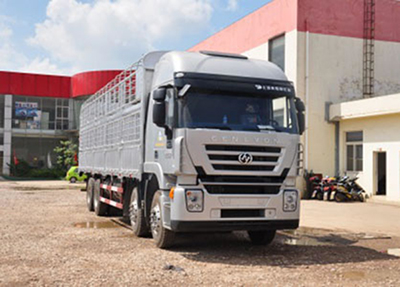

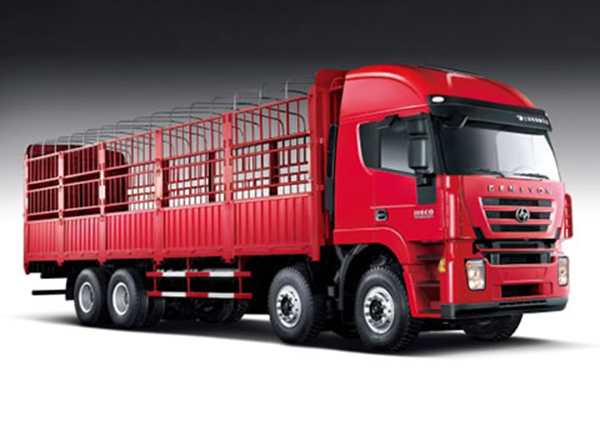

Genlyon Euro IV 8×4 Cargo Truck

Our 8×4 cargo truck adopts WD615.50 engine, uses single plateΦD430mm large diaphragm spring clutch, and conforms to Euro II emission standards. This cargo truck has the strength and durability to keep your operation at top performance.

The Kingkan Euro IV 8×4 cargo truck is configured with SFH's cursor engine that features excellent power performance. Its firm cargo body can be designed in different styles, facilitating wonderful transportation with high efficiency and cost efficiency.

Technical Parameters

Model GENLYON CQ1315HTG466
Driving type 8×4
Weights G.V.W. (kg.) 31000
Kerb weight (kg.) 13500
Payload (kg.) @ G.V.W. 17370
Overall Dimensions (mm) Wheelbase 1800+4600+1350
Overall length 11990
Cab width 2500
Cab height (unladen) 3838
Front overhang 1435
Rear overhang 2780
Min. Ground clearance 280
Performance Parameters Maximum Speed ( km/h ) 110
Economic Speed ( km/h ) 78-95
Maximum Gradability ( % ) 21%
Minimum Turning Diameter ( m ) 12900
Cab Type High roof
Engine Model C9 390
Capacity 8709ml
Max power (HP/KW)@rpm 390HP/286KW @2100rpm
Max torque (Nm) @rpm 1590Nm @ 1200-1500rpm
Emission regulation EURO IV
Gearbox FAST 12JSD180TA
Clutch φ430 (17")single plate, diaphragm spiral spring, pull type
Suspensions Front semi-elliptic
Rear semi-elliptic
Steering power assisted
Drive Axles Type H6A ,Single Reduction
Loading Rear 13T+13T
Ration 4.11
Tyre 12.00R20/315/80R22.5
Fuel Tank 600 liters steel with lockable fuel cap
Cargo Body
Type Rectangle
Length (mm) 9400
Width (mm) 2368
Height (mm) 800
Optional
Engine C9 290HP/310HP/350HP
C13 390HP/430HP
Cab Flat roof

SAIC-IVECO HONGYAN Commercial Vehicle Company is a cargo truck manufacturer in China. Through our years of development, we can also provide other products like tractor trucks, tanker trucks etc., in addition to cargo trucks. To offer customers better heavy duty trucks, we constantly introduce the internationally advanced technology, use sophisticated equipment, and employ highly trained technicians to produce our vehicles. With high quality and reliability, our products have established our good reputation with customers in the Middle East, Africa, Central America, and Southeast Asia.

We are confident that our heavy duty trucks will meet your expectations. Please feel free to contact us for further information.
