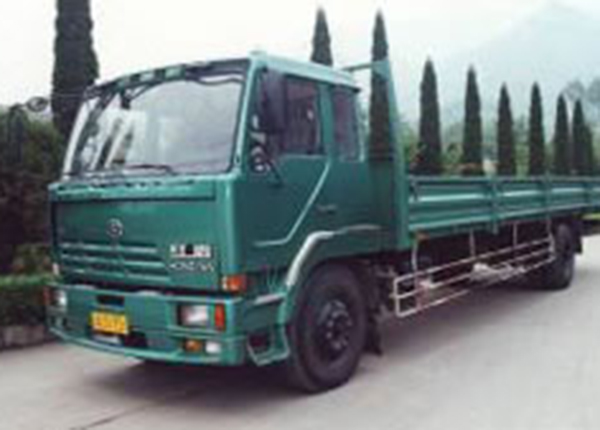

Cargo Truck 4×2

Our 4×2 cargo truck is equipped with WD615.56 engine and adopts German ZF CQ8111D rotary valve steering gear. It conforms to Euro II emission standards, thus meeting environmental standards. With great durability, comfortable cab, and high visibility, this cargo truck is an ideal choice for you.

Technical Parameters

Hongyan XinDaKang Euro II 4×2 Cargo Truck
Model		CQ1163TLG461
Driving type		4×2
Total mass kg		16000
Curb weight kg		8000
Rated loading weight kg		7805
Total mass of trailer kg		10000
Wheelbase mm		4600
Outline dimensions mm	Length	8687
	Width	2500
	Height	3045,3637
Max. internal dimensions of body mm	Length	6252
	Width	2368
	Height	600
Max. speed km/h		94
Max. gradeability %		32
Fuel consumption under certain conditions L/100km		24
Engine model		WD615.56
Engine power kw (Ps)		193 (263 Hp)
Max. torque/speed (N.m/(r/min))		1100/1300～1600
Clutch		Single plate Φ430mm large diaphragm spring clutch
Transmission		9JS119
Cab		Hongyan XinDaKang cab
Number of steel plate spring (front/rear)		8/10+6
Steering gear		German ZF CQ8111D rotary valve steering gear
Driving axle		Full floating, double reduction with differential Steyr cast steel driving axle
Tire		11.00-20,12.00-20, 11.00R20,12.00R20
Emission standard		Euro II

SAIC-IVECO HONGYAN Commercial Vehicle Company is a China-based cargo truck manufacturer. Some of our popular products include cargo trucks, tractor trucks, special vehicles, etc. In order to guarantee our product quality, we implement ISO9001:2000 quality management system and strictly monitor each process, from raw material selection, to final delivery. Meanwhile, we also take effective measures to keep down our production costs. As a result, our high quality, competitively-priced heavy trucks are increasingly in demand in the Middle East, Africa, Central America, and Southeast Asia.
If you are in need of any of our heavy duty trucks, please contact us for more information!
