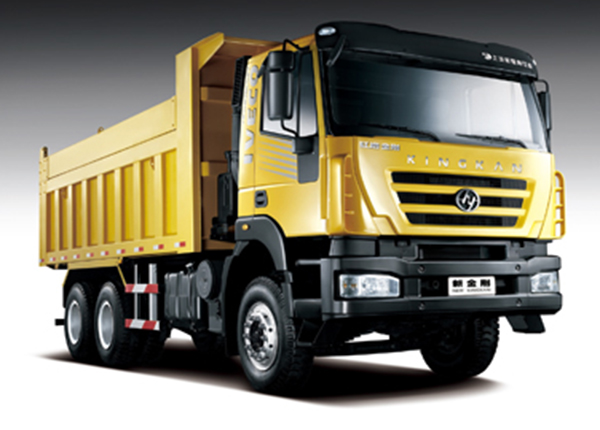

Hongyan Kingkan 6×4 Tipper Truck

Hongyan Kingkan 6×4 Tipper Truck

The Hongyan Kingkan 6×4 tipper truck has high carrying capacity with its bending resisting beam. Also, the cast steel bridge of 6×4 tipper truck has high strength, providing the truck with strong transport capability. The tipper truck is made with the widest frame of 865mm manufactured in China. It has excellent anticorrosion system due to the electrophoresis paint process.

Hongyan Kingkan 6×4 Tipper Truck

Technical Specifications of the 6×4 Tipper Truck

Model CQ3254HMG364E CQ3254HMG384 CQ3254HTG384
Chassis model CQ3254HMG364E CQ3254HMG384 CQ3254HTG384
Driving type 6×4
Wheelbase 3600 + 1350 mm 3825 + 1350 mm 3825 + 1350 mm
Gross Vehicle Weight 25000 Kg
Vehicle kerb mass 12010 Kg 12090 Kg 12090 Kg
Maximum payload 12860 Kg 12780 Kg 12780 Kg
Max. trailer weight -
Outside dimension L 8015, 8115 mm 8475, 8675 mm 8475, 8675 mm
W 2500 mm
H 3510 mm
Cargo box dimension mm L 5200, 5400 mm 5400, 5600, 5800, 6200 mm 5400, 5600, 5800, 6200 mm
W 2300 mm
H 1500 mm
Maximum speed 80 Km/h
Maximum gradeability 35-38%
Fuel consumption 28-32 L/100 Km
Engine WP10.290E32, WP10.310E32 WP10.290E32, WP10.310E32 WP10.340E32, WP10.336
Clutch Φ430 Pull Type Diaphragm Spring
Gearbox 10JSD120,10JSD140 10JSD120,10JSD140 10JSD140
Cab New Kingkan Cab, Single Sleeper, with A/C
Spring No. (F/R) 9/12
Steering CQ8111D ZF Technology Rotary Valve Steering
Drive axle Twin Reduction Cast Steel Axle 5.73
Frame 865 × 317 × (8+8)
Tire 11.00-20, 12.00-20, 11.00R20, 12.00R20
Emission STD EURO III EURO III EURO III
Bulletin No. 226 226 226
Specification above is just for reference. To make order, please contact us.
