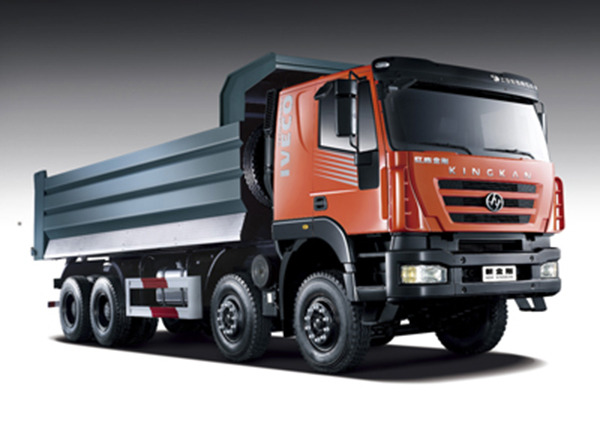

Hongyan Kingkan 8×4 Tipper Truck

Hongyan Kingkan 8×4 Tipper Truck

The Hongyan Kingkan 8×4 tipper truck has more than 15 tons capacity with a resistant bending beam that allows more capacity loading. It has a cast steel bridge made with strong carrying capability as well. This tipper truck has good anticorrosion system because it goes through an electrophoresis paint process. The 8×4 tipper truck is made with the widest frame of 865mm manufactured in China.

Hongyan Kingkan 8×4 Tipper Truck

Technical Specifications of 8×4 Tipper Truck

Model CQ3314HTG366 CQ3314HTG426 CQ3313HMG366
Chassis model CQ3314HTG366 CQ3314HTG426 CQ3313HMG366
Driving type 8×4
Wheelbase 1800+3600+1350 1800+4200+1350 1800+3600+1350
Gross Vehicle Weight 31000 Kg
Vehicle kerb mass 15070 Kg 15370 Kg 15070 Kg
Maximum payload 15800 Kg 15500 Kg 15800 Kg
Max. trailer weight 9900 Kg -- --
Outside dimension L 10285,10345 mm 10835,11035 mm 10285,10345 mm
W 2500 mm 2500 mm 2500 mm
H 3510,3350 mm 3510,3350 mm 3510 mm
Cargo box dimension L 7400,7600 mm 8000,8200 mm 7400,7600 mm
W 2300 mm 2300 mm 2300 mm
H 1100,1080 mm 1000 mm 1100,1080 mm
Maximum speed 80 Km/h
Maximum gradeability 45-55% 45-55% 33-40%
Fuel consumption 28-32 L/100 Km
Engine WP10.336,WP10.340E32 WP10.336,WP10.340E32 WP10.310E32
Clutch Φ430 Pull Type Diaphragm Spring
Gearbox 12JS160T,12JS180T 12JS160T,12JS180T 10JSD140
Cab LOW ROOF CAB,Single Sleeper, with A/C
Spring No. (F/R) 8/8/12
Steering CQ8111D ZF Technology Rotary Valve Steering
Drive axle 5.73 Twin Reduction Cast Steel Axle 5.73
Frame 865 × 317 × (8+8)
Tire 11.00-20, 12.00-20, 11.00R20, 12.00R20
Emission STD EURO III
Bulletin No. 226 225 225
Specification above is just for reference. To make order, please contact us.
