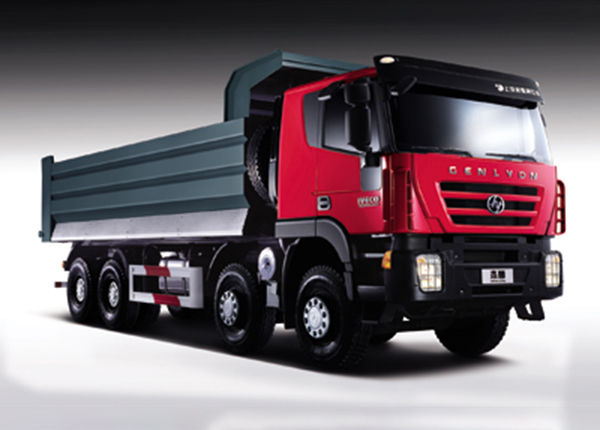

Hongyan Genlyon 8×4 Tipper Truck

Hongyan Genlyon 8×4 Tipper Truck

The Hongyan Genlyon 8×4 tipper truck is made with the currently widest frame of 865mm. It has the best anticorrosion system due to the electrophoresis paint process. The 8×4 tipper truck has strong carrying capacity due to its cast steel bridge with high strength and its beam with good bending resistance.

Hongyan Genlyon 8×4 Tipper Truck

Technical Parameters of the 8×4 Tipper Truck

Model CQ3314HTG366 CQ3314HTG426 CQ3314HTG466
Chassis model CQ3314HTG366 CQ3314HTG426 CQ3314HTG466
Driving type 8×4
Wheelbase 1800 + 3600 + 1350 mm 1800 + 4200 + 1350 mm 1800 + 4600 + 1350 mm
Gross Vehicle Weight 31000 Kg 31000 Kg 31000 Kg
Vehicle kerb mass 15070 Kg 15370 Kg 15320 Kg
Maximum payload 15800 Kg 15500 Kg 15550 Kg
Max. trailer weight -- -- --
Outside dimension L 10285, 10345 mm 10835, 11035 mm 11975 mm
W 2500 mm 2500 mm 2500 mm
H 3510, 3350 mm 3510, 3350 mm 3510, 3350 mm
Cargo box dimension L 7400, 7600 mm 8000, 8200 mm 9400, 9500 mm
W 2300 mm 2300 mm 2300 mm
H 1100, 1080 mm 1000 mm 890 mm
Maximum speed 80 Km/h 80 Km/h 80 Km/h
Maximum gradeability 45-55%
Fuel consumption 32-38 L/100 Km
Engine WP10.336, WP10.375, F2CE0681C*B052, F2CE0681B*B052
Clutch Φ430 Pull Type Diaphragm Spring
Gearbox 12JS160T
Cab Genlyon low cab
Spring No. (F/R) Left 14, Right 13 Left 14, Right 13/12
Steering ZF Imported Hydraulic Power Steering With Variable Ratio
Drive axle Twin Reduction Cast Steel Axle 5.73
Frame 865 × 317 × (8+8)
Tire 11.00-20, 12.00-20, 11.00R20, 12.00R20
Emission STD EURO III
Bulletin No. 200
Specification above is just for reference. To make order, please contact us.
