Home » Products » Cargo Truck » Genlyon Euro III 6×4 Cargo Truck

Cargo Truck

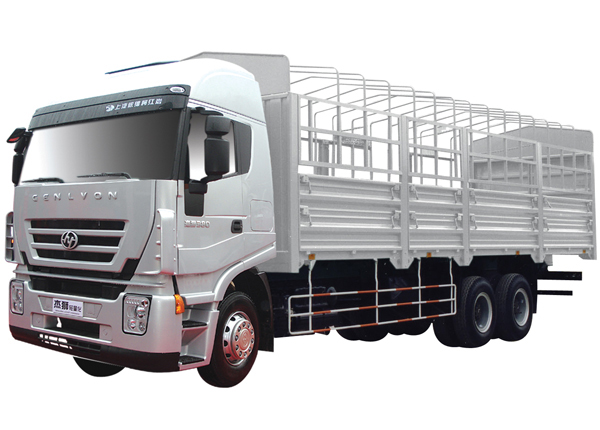

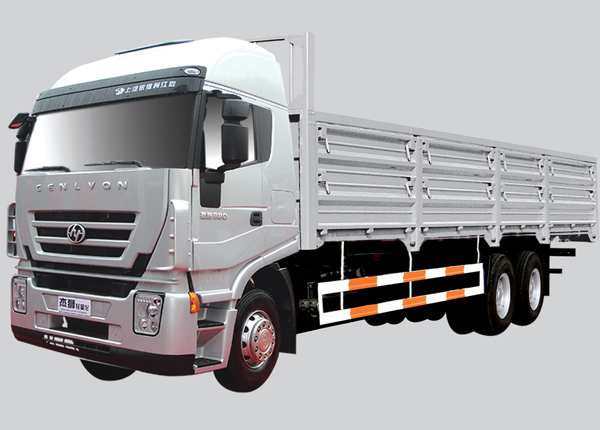

Genlyon Euro III 6×4 Cargo Truck

Our 6×4 cargo truck adopts full floating, double reduction Steyr cast steel driving axles and 9JS119 transmission. Designed with environmental protection in mind, it conforms to Euro III standards. So it is completely safe to use for the environment. This cargo truck is durable and reliable, and also provides a comfortable cab.

Genlyon Euro III 6×4 Cargo Truck

Technical Parameters

Model GENLYON CQ1254HTG434
Driving type 6×4
Weight Gross Vehicle Weight (kg) 25000
Kerb Weight (kg) 11140
Payload (kg) at Gross Vehicle Weight 13730
Overload Range of Gross Vehicle Weight (kg) at Road Condition <30000 at complex road
Overall Dimensions (mm) Wheelbase 4325+1350
Overall Length 9640
Cab Width 2500
Cab Height (unladen) 3201
Front Overhang 1435
Rear Overhang 2530
Min. Ground Clearance 280
Cab Type Flat-roof, A/C with sleeper, manual tilt
Suspension Mechanical suspension
Driver Seat Adjustable seat
Engine Model SFH® Cursor 9 F2CE0681B×B052 made by Saic-Fiat Powertrain Hongyan Co., Ltd.
Cylinder (in line) 6
Capacity 8709ml
Turbocharger Inter-cooling
Max. Power (hp/kw)@rpm 380hp/280kw @2100rpm
Max. Torque (Nm) @rpm 1500Nm @ 1500rpm
Emission Regulation (Euro 3)
Cooling Fan 2 speed electro-magnetic
Fuel System BOSCH® unit pump injector
Gearbox Fast® 12JS160T 12 forward shifts and 2 reverse shifts with full synchronizers with Eaton Fuller technology.
Clutch φ430 (17") single plate, diaphragm spiral spring, pull type
Brakes Type 2 independent pneumatic circuits, drum/drum
Parking Mechanical with spring cylinder, rear
Emergency Combined with parking brake
Engine Decompression (exhaust valve brake)
ABS Optional
Suspensions Front Parabolic leaf
Shock absorbers 2 on front
Rear Semi-elliptic leaf
Steering ZF® 8098 power assisted
Axles Type Twin-reduction welding axle
Loading Front 9T
Rear 13T+13T
Hub Reduction Available
Differential Lock Cross and inter axle
Tire 12.00R20/315/80R22.5
Fuel Tank 400L steel with lockable fuel cap
Cargo Body
Type Standard
Length (mm) 7060
Width (mm) 2368
Height (mm) 800
Bottom Thickness (mm) Standard
Side Thickness (mm) Standard
Optional
Engine Cursor engine 290hp, 310hp, 340hp, 380hp
Wheelbase(mm) 3825+1350, 5025+1350, 5925+1350
Cab 1. High roof
2. Auto tilting
3. Automatic heating rearview mirror
4. Air-suspension
5. Pneumatic seat

Thanks to our consistent efforts and decades of experience, we at SAIC-IVECO HONGYAN Commercial Vehicle Company consistently satisfy our customers by providing high quality products at economical prices. Today, we are known as a reliable cargo truck manufacturer in China. To ensure the quality of our products, we have established a complete quality control system to monitor every production process, introduced advanced manufacturing technology from Italian IVECO, employed experienced staff, and utilized sophisticated inspection equipment. In addition to quality products, we also provide customers with superior service. Consequently, our products are very popular with customers worldwide.
Please don't hesitate to contact us if you are interested in our heavy trucks, whether cargo trucks, dump trucks, or cargo trucks. Welcome!
