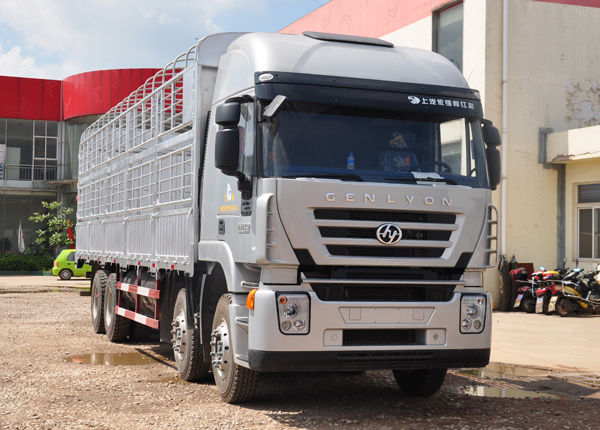

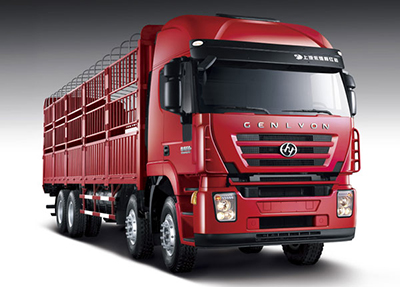

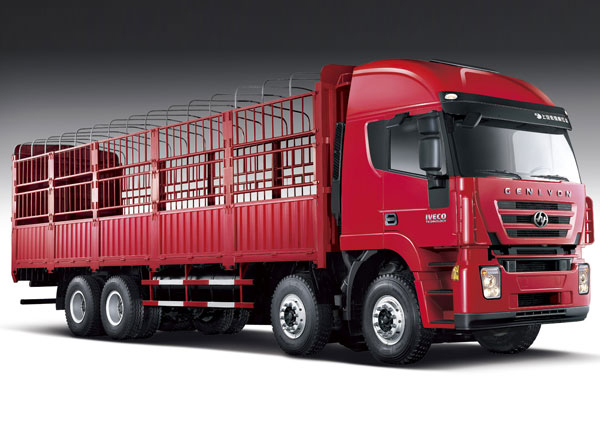

Genlyon Euro III 8×4 Cargo Truck

Our 8×4 cargo truck adopts WD615.50 engine, uses single plate Φ430mm large diaphragm spring clutch, and conforms to Euro II emission standards. This cargo truck has the strength and durability to keep your operation at top performance.

The Genlyon Euro III 8×4 cargo truck is configured with SFH's cursor engine that features excellent power performance. Its firm cargo body can be designed in different styles, facilitating wonderful transportation with high efficiency and cost efficiency.

Genlyon Euro Ⅲ 8×4 Cargo Truc

Technical Parameters

Model GENLYON CQ1314HTG466
Driving Type 8×4
Weight Gross Vehicle Weight (kg) 31000
Kerb Weight (kg) 13870
Payload (kg) at Gross Vehicle Weight 17000
Overload Range of Gross Vehicle Weight(kg) at Road Condition <60000 on complex road
Overall Dimensions (mm) Wheelbase 1800+4600+1350
Overall Length 11939
Cab Width 2500
Cab Height (unladen) 3838
Front Overhang 1435
Rear Overhang 2754
Min. Ground Clearance 280
Cab Type High-roof, A/C with sleeper, manual tilt
Suspension Mechanical suspension
Driver Seat Adjustable
Engine Model SFH® Cursor 9 F2CE0681B×B052 made by SAIC-FIAT Powertrain Hongyan Co., Ltd.
Cylinder (in line) 6
Capacity 8709ml
Turbocharger Inter-cooling
Max. Power (hp/kw)@rpm 380hp/280kw @ 2100rpm
Max. Torque (Nm) @rpm 1500Nm @ 1500rpm
Emission Regulation (Euro 3)
Cooling Fan 2 shifts electro-magnetic
Fuel System BOSCH® unit pump injector
Gearbox Fast® 12JS160TA 12 forward shifts and 2 reverse shifts with full synchronizers with Eaton Fuller technology.
Clutch φ430 (17") single plate, diaphragm spiral spring, pull type
Brakes Type 2 independent pneumatic circuits, drum/drum
Parking Mechanical with spring cylinder, rear
Emergency Combined with parking brake
Engine Decompression (exhaust valve brake)
ABS Optional
Suspensions Front Parabolic leaf
Shock Absorbers 2 on front
Rear Semi-elliptic leaf
Steering Power Assisted
Axles Type Twin-reduction welding axle
Loading Front 9T
Rear 13T+13T
Hub Reduction Available
Differential Lock Cross and inter axle
Tire 12.00R20/315/80R22.5
Fuel Tank 350L steel with lockable fuel cap
Cargo Body
Type Standard Cargo body
Length (mm) 9400
Width (mm) 2368
Height (mm) 800
Bottom Thickness (mm) Standard
Side Thickness (mm) Standard
Optional
Engine Weichai Power WP10 340, WP10 380. Cursor engine at 290hp, 310hp, 340hp, 380hp
Cab 1. Flat roof
2. Auto tilting
3. Air-suspension
4. Pneumatic seat

SAIC-IVECO HONGYAN Commercial Vehicle Company is a cargo truck manufacturer in China. Through our years of development, we can also provide other products like tractor trucks, tanker trucks etc., in addition to cargo trucks. To offer customers better heavy duty trucks, we constantly introduce the internationally advanced technology, use sophisticated equipment, and employ highly trained technicians to produce our vehicles. With high quality and reliability, our products have established our good reputation with customers in the Middle East, Africa, Central America, and Southeast Asia.
We are confident that our heavy duty trucks will meet your expectations. Please feel free to contact us for further information.
