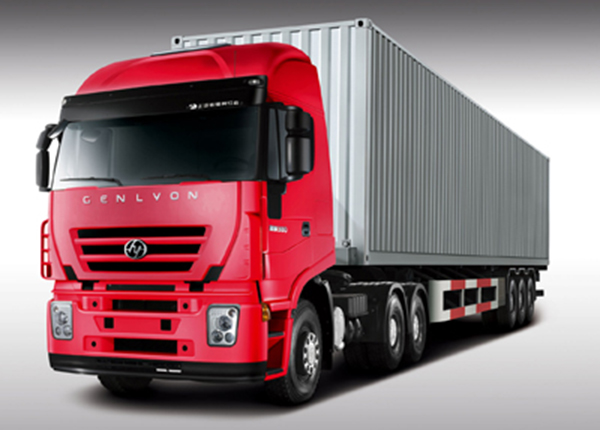

Hongyan Genlyon 6×4 Tractor

Hongyan Genlyon 6×4 Tractor

Hongyan Genlyon 6×4 Tractor

Technical Specifications of the 6×4 Tractor

Model CQ4254HTVG324 CQ4254HTVG324C CQ4254HTVG324 CQ4254HTVG324C CQ4254HTVG324 CQ4254HTVG324C
Driving type 6 ×4
Gross Vehicle Weight 49000 Kg
Vehicle kerb mass 9670 Kg
Fifth wheel payload 15200 Kg
Max. trailer weight 39200 Kg
Wheelbase 3225 + 1350 mm
Outside dimension L 6718 mm
W 2500 mm
H 3832 (3957 with Rear Deflector)
Maximum speed 95 (110) Km/h
Gradeability 30% 32% 35%
Fuel consumption 32-41 L/100 Km
Fifth wheel coupler height(280) 1348 mm(Loaded 1245)
Fitting radius (F/R) 1393/2084 mm
Distance from fifth wheel to balance axle center 320 mm
King pin diameter 50.8 mm
Engine C9-340 C9-380 C9-400
Output Kw (Ps) 250 (340) 280 (380) 297 (400)
Maximum torque/Rpm, N.m/(r/min) 1300/1100-1700 1500/1100-1700 1600/1100-1700
Clutch Φ430 Pull Type Diaphragm Spring
Gearbox 12JS160TA 12JS160TA 12JS180TA
Cab High Roof, long cab, low floor
Steering ZF Imported Hydraulic Power Steering With Variable Ratio
Drive axle Single Reduction 4.11/4.625 Twin Reduction 4.42/4.8/5.73
Tire 11.00-20(11.00R20)12.00-20(12.00R20)
Emission STD EURO III
Bulletin No. 2001H8
Specification above is just for reference. To make order, please contact us.
